Application.
Datsun 1200 (7001 - 7305)
*Will fit to Datsun 1200 series models for the SU twin carburetor.
(Please make sure check shape before purchase.)
This fuel pump repair kit available for Datsun 1200 series models for the SU twin carburetor.
If A series engine, need to be considered below.
There are cases not original(factory specification).
There are cases modified to another.
Include.
x1 Diaphragm.
Brand NEW.
Nissan Genuine Parts.

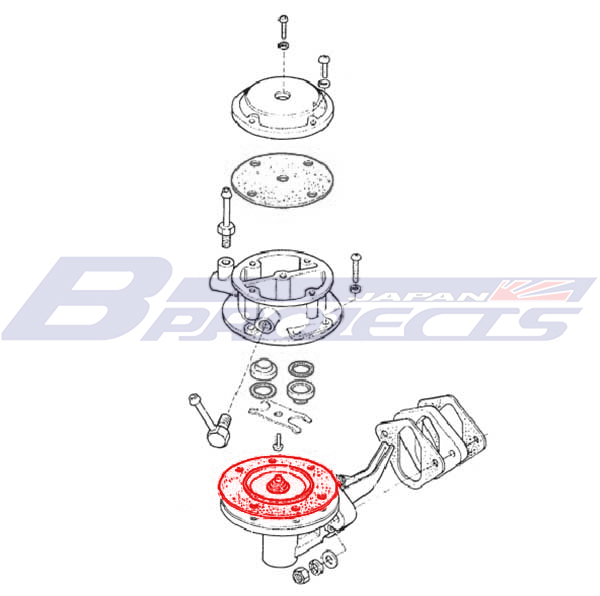

This sale is a diaphragm for Datsun 1200 (GX/SU carburetor.)

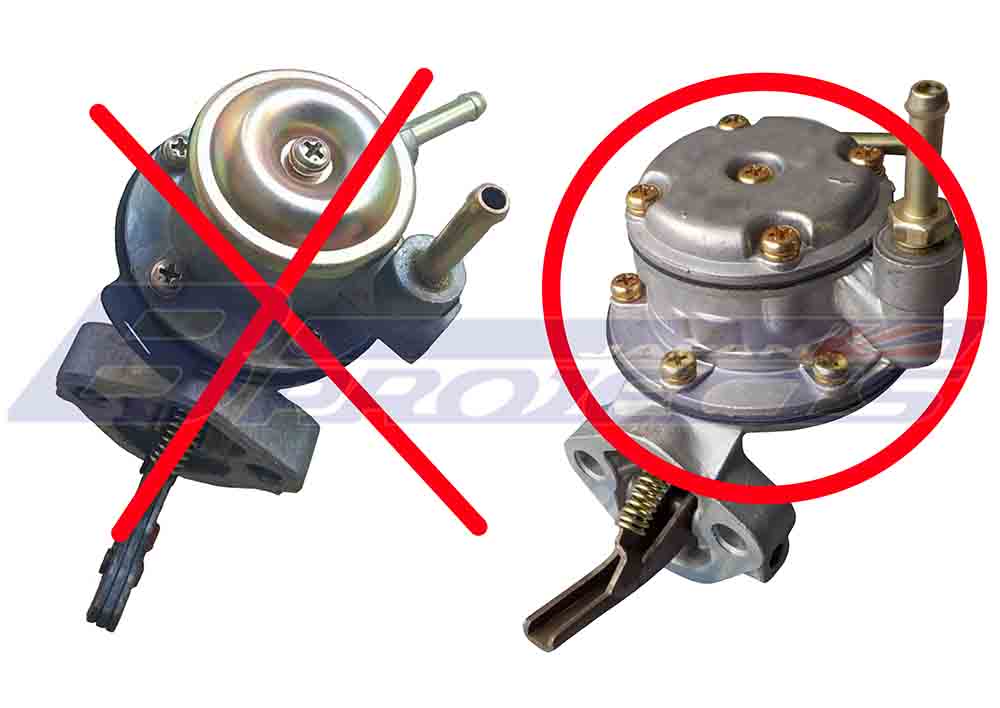

Application Fuel Pump OEM number:
17010-H2300
17010-H2301
Rubber Diaphragm/5 Holes (Center Point):83.5mm.

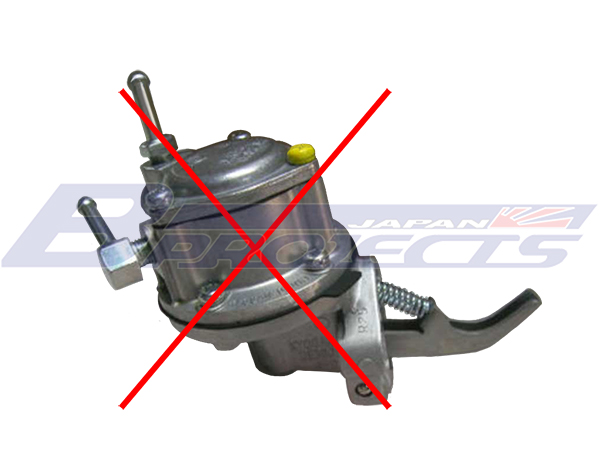

Not Available Fuel Pump (Regular models):
17010-18010,17010-18026,17010-H1000,17010-H1001,17010-H1002
Rubber Diaphragm/5 Holes (Center Point): 69mm.
 |
 |
Size(Approx): Genuine Equivalent Products. |

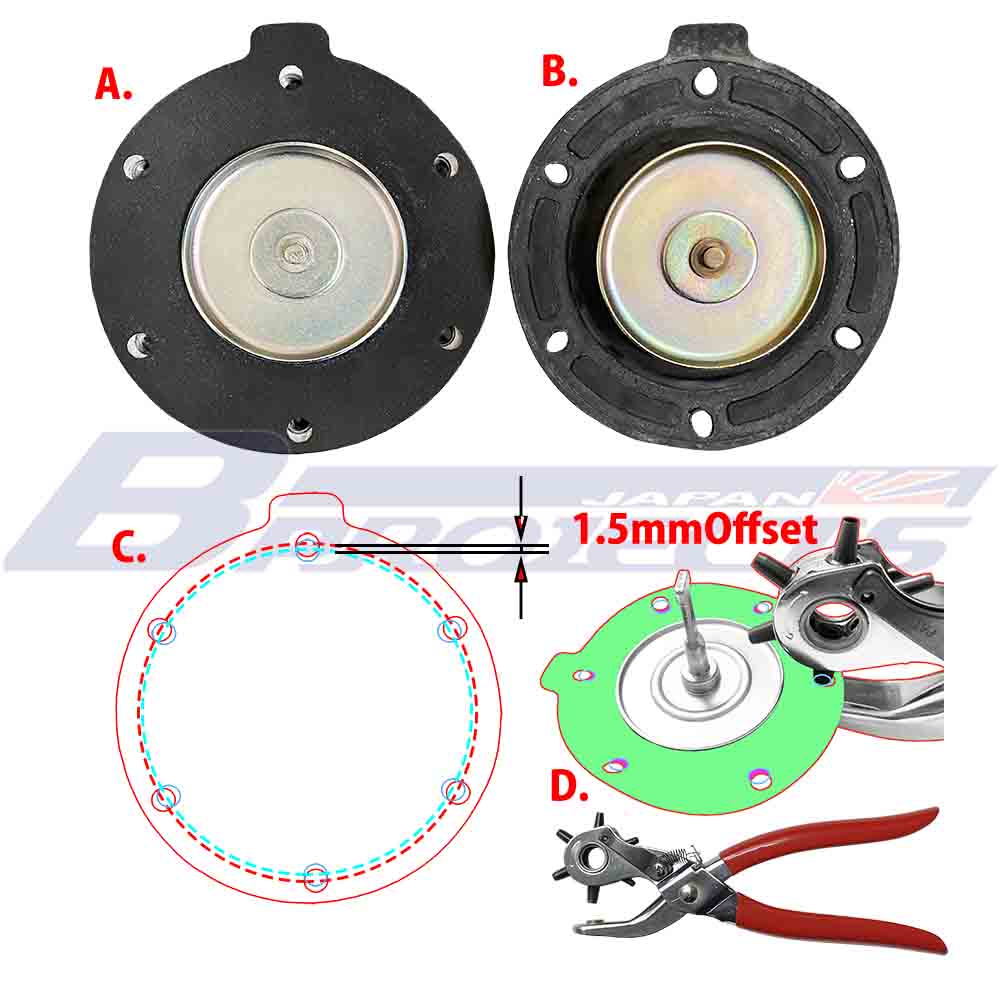

If The hole PCD is a smaller more than diaphragm: Please required punch processing for each hole in 1.5mm offset. A: Please put on the diaphragm the lower body of the fuel pump as temporarily attach. B: When the removed diaphragm looks like B: it's probably become A. If don't fit to hole PCD of body. C: Perhaps, The holes are offset by 1.5mm. D: Please require reprocessing uses the "Rotary Punch" for 1.5mm offset processing. Our recommendation. |
