Electric Distributor (Bprojects)

List price: 33,000 ￥JPY (Including Commission)

27,500 ￥JPY (Including Commission)

(Excluding fee 25,000 ￥JPY)

Ask a question

CODE: P-E-018-0

Stock: Out of stock

Description
Features

Application.
Datsun 1200 (7001 - 7305)
Datsun 1200 ute (7510 - 9403)
Datsun 1000 (6604 - 7001)*1
Datsun 120Y, B210-B310 (7305 - 7710 - 8304)

Include.
x1 Complete Distributor kit.

This distributor can do easy conversion to electric specifications.
You can get trust spark very much.
The wiring connects only two wires to ignition coil. so very easy.

TO:
RED: I/G coil +.
Blue: I/G coil -.

Repair Nissan OEM Number:
Distributor cap: 22162-78A10.
Distributor rotor: 22157-01B01

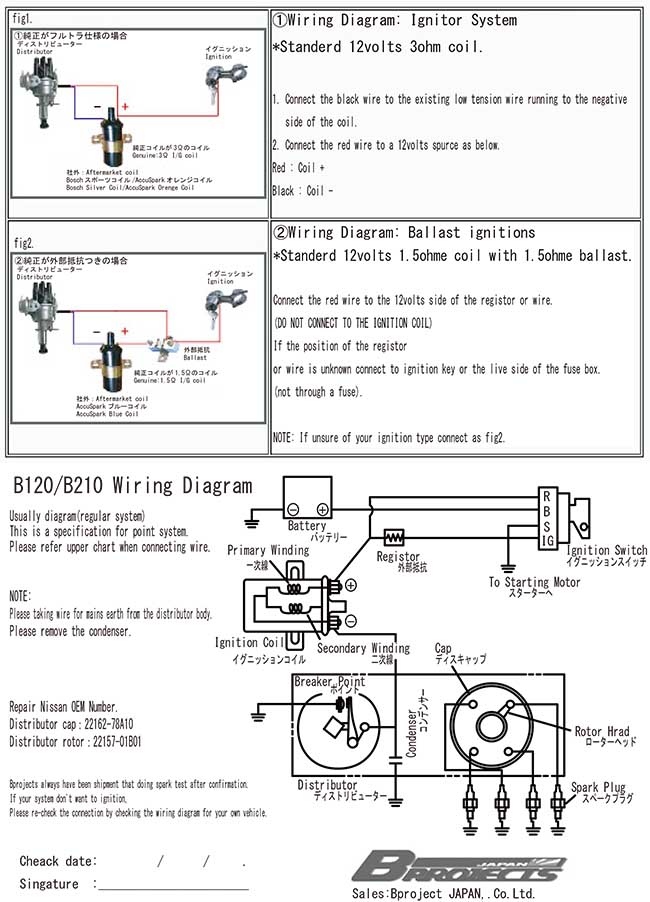

fig1.	①Wiring Diagram: Ignitor System *Stendard 12volts 3ohm coil 1. Connect the black wire to the existing low tension wire running to the negative side of the coil. 2. Connect the red wire to a 12 volt source as below. Red-Coil + Black-Coil -

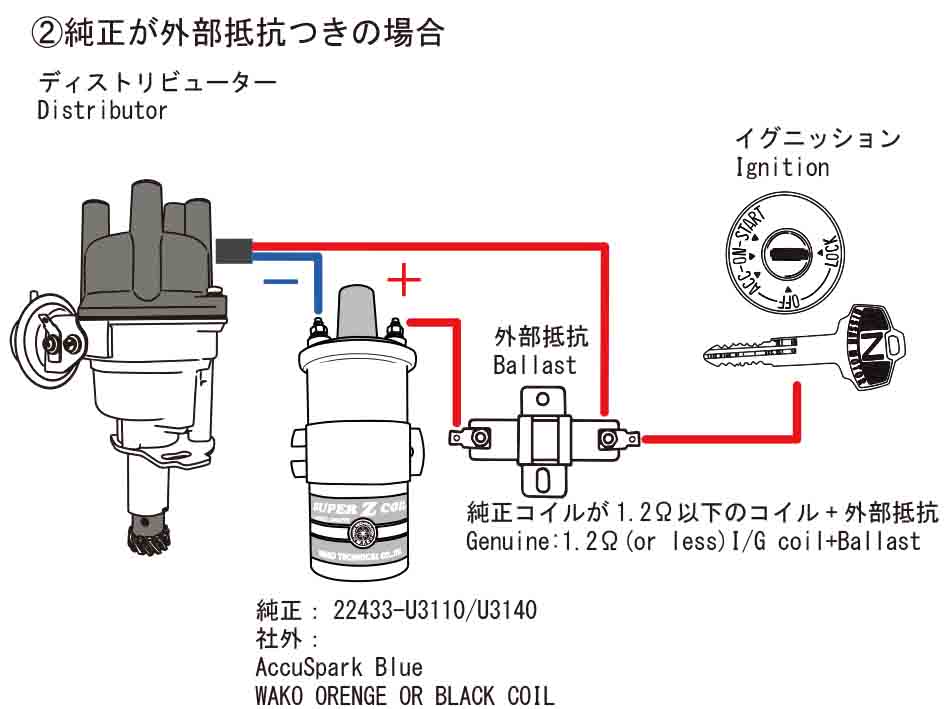

fig2. 1	②Wiring Diagram: Ballast ignitions *Stendard 12volts 1.5ohm coil with 1.5ohm ballast Connect the red wire to the 12 Volt side of the resistor or wire. (DO NOT CONNECT TO COIL). if the position of the resistor or wire is unknown connect to ignition key or the live side of the fuse box. (not through a fuse). NOTE : If unsure of your ignition type connect as b.
