Application.
Datsun 1200 (7001 - 7305)
Datsun 1200 ute (7510 - 9403)
Datsun 120Y, B210-B310 (7305 - 7710 - 8304)
F4W56L F5C56A FS5W60A
*Do check or see the picture:
country specifications, age type, grade!
Include.
x1 Shfter bracket RH side.
x1 Shfter bracket LH side.(Same to A)
X2 Fix bolts & Nuts(two pair).

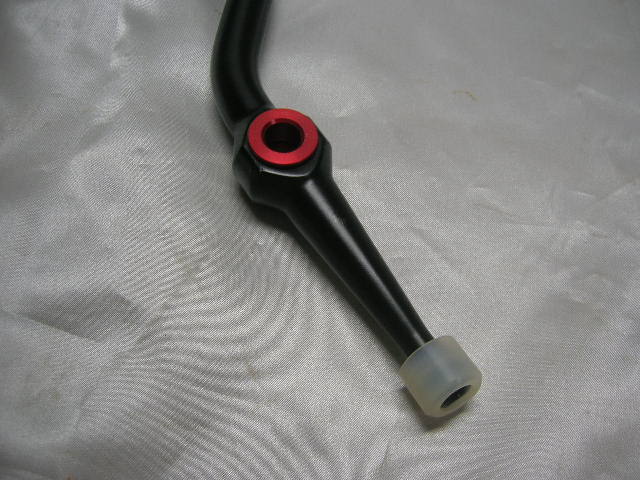

x1 Shift lever.(M10-P1.25 metric)
x1 Shift alloy bushes(one pair).
x1 Bush head.
x1 Control lever rubber boot.
x1 Ball knob.
All Brand NEW.
This Short Shifter Kit reduces the amount of time spent shifting, improving your lever ratios, and resulting in better performance!
Reduces stock shift throw from 35% to 50%.
Quicker and faster shifting response.
Easy Installation!!
Bracket & Shift bush; Surface treatment: RED anodized.
Installation Guide
|

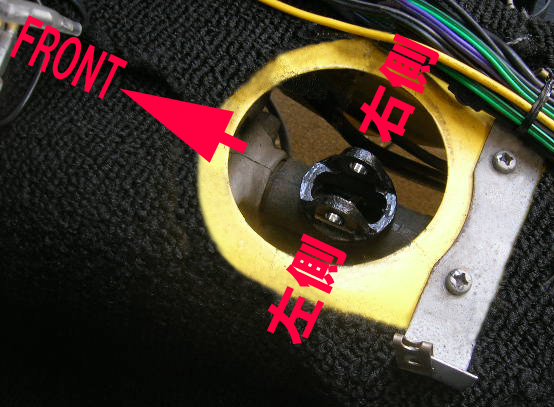

1. Remove Console/STD shift lever. Place relations. Sit in the vehicle driver's seat, The left side as LHD and the right side as RHD. |
 |

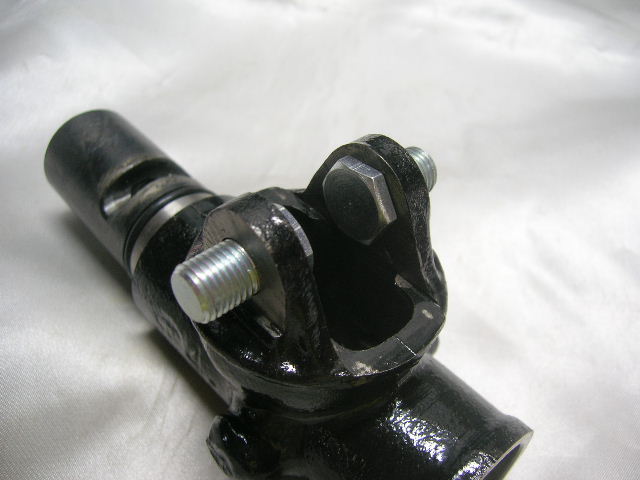

2. Fix bolts Put bolts for fixation from the inside both to brackets. Because Does not use bolt hole. the bolt direction in particular does not have meaning. |
|

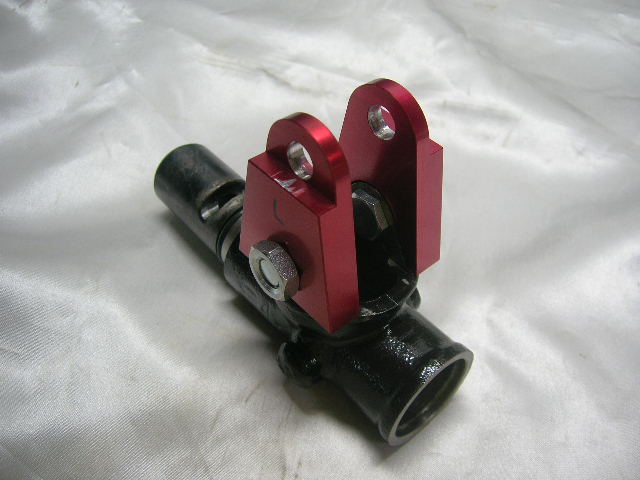

3. Shifter brackets Do temporary set in right and left place appointment direction. |
|
4. Shift bushes Oil or grease to bushes. |
|
5. Assembly Insert a lever to between bracket. Insert a shift control pin from the right side. Fix pin by an E ring. strongly fasten both nut. So that a bracket does not act. |
|

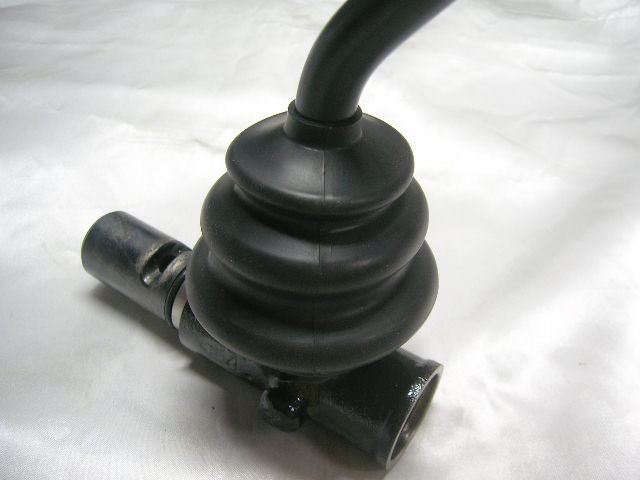

6. Rubber boot If have not any problem. You put boots, and all finished. |
